VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

Name: VMC1580 CNC Vertical Machining Centers 5axis 4axis 3axis Milling Machines Metalworking
Brand: HR
Price: 50000 USD

Buy cheap VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking product

Brand Name : HR

Model Number : VMC1580

Certification : CE

Place of Origin : SHANDONG

MOQ : 1 SET

Price : 50000 USD /SET

Payment Terms : L/C, T/T, D/P

Supply Ability : 100SETS /MONTH

Delivery Time : 30 work days

Packaging Details : Standard configuration packaging

Speed : 6000rpm

Color : Custom-made

Cutting Feed : 1-12000mm/min

Packing : Export standard

Number Of Axes : 3 4 5

Positional Accuracy : ±0.01mm

Core Components : Motor

Guide Way Type : Linear guide way type

Weight : 12000kg

Accuracy : ±0.005mm

Controlling Mode : Fanuc Mitsubishi Siemens Gsk System

Contact Now

Product Description

VMC1580 3/4/5 axis vertical machine center cnc milling machine with price is composed of mechanical equipment and numerical control system. VMC1580 vertical turret metal cnc tool large milling machine is an automated machine that is suitable for efficient machining of complex parts.

VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

◆The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability

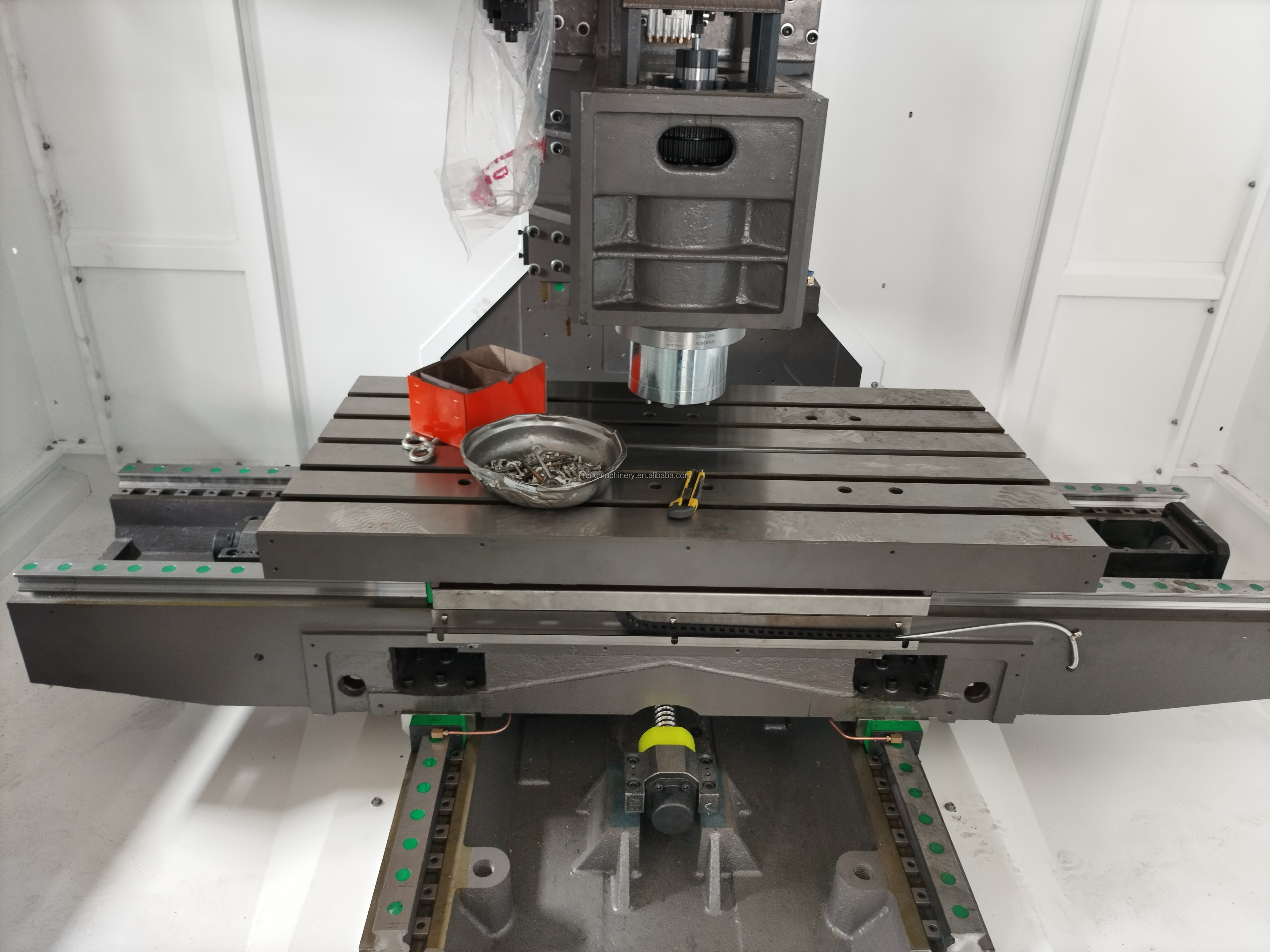

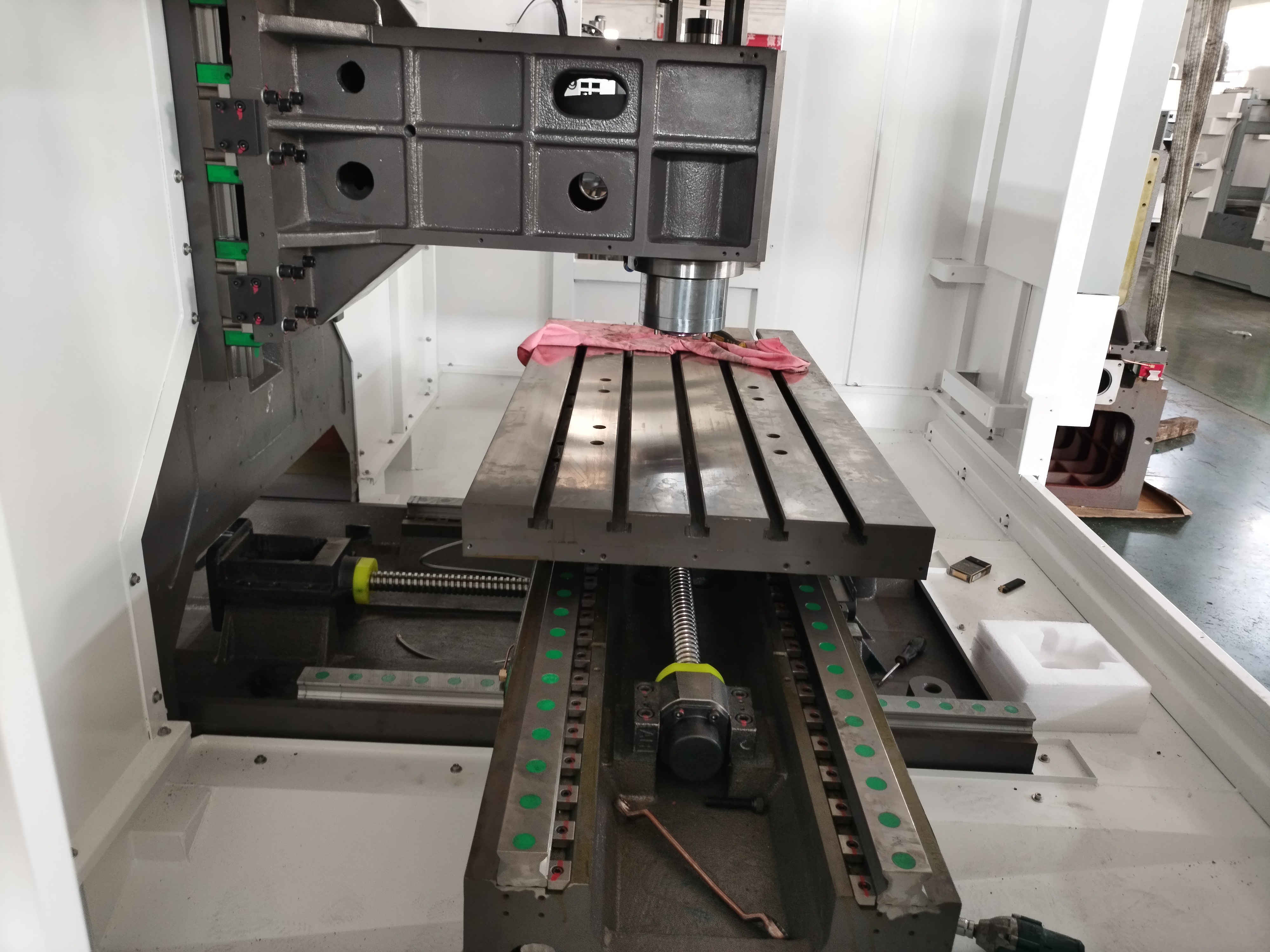

◆The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy; ◆The three-axis transmission adopts Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;

◆The base adopts a casting large water tray structure, which has good waterproof performance;

◆The high-rigidity Taiwan-made BT50 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;

Product Paramenters

Model	Unit	VMC1580
working tale size	mm	800x1700
X/Y/Z travel	mm	1500/800/700
Distance between spindle end and table	mm	170/840
Distance between spindle center and column guide way	mm	810
Maximum weight of working table	kg	1500
Table-T-slot	mm	5-22-135
X/Y/Z axis rapid feed	mm/min	15/15/12
Three axis working rapid speed	mm/min	6000
Positioning accuracy	mm	±0.001
Repeat positioning accuracy	mm	±0.0075
Spindle speed	rpm	6000
Spindle taper	mm	BT50
Torque force of spindle motor	nm/kw	15/18.5
Magazine tool capacity	pcs	24(dis type)
machine size	mm	430032003100
machine weight	kg	13000

Detailed Images

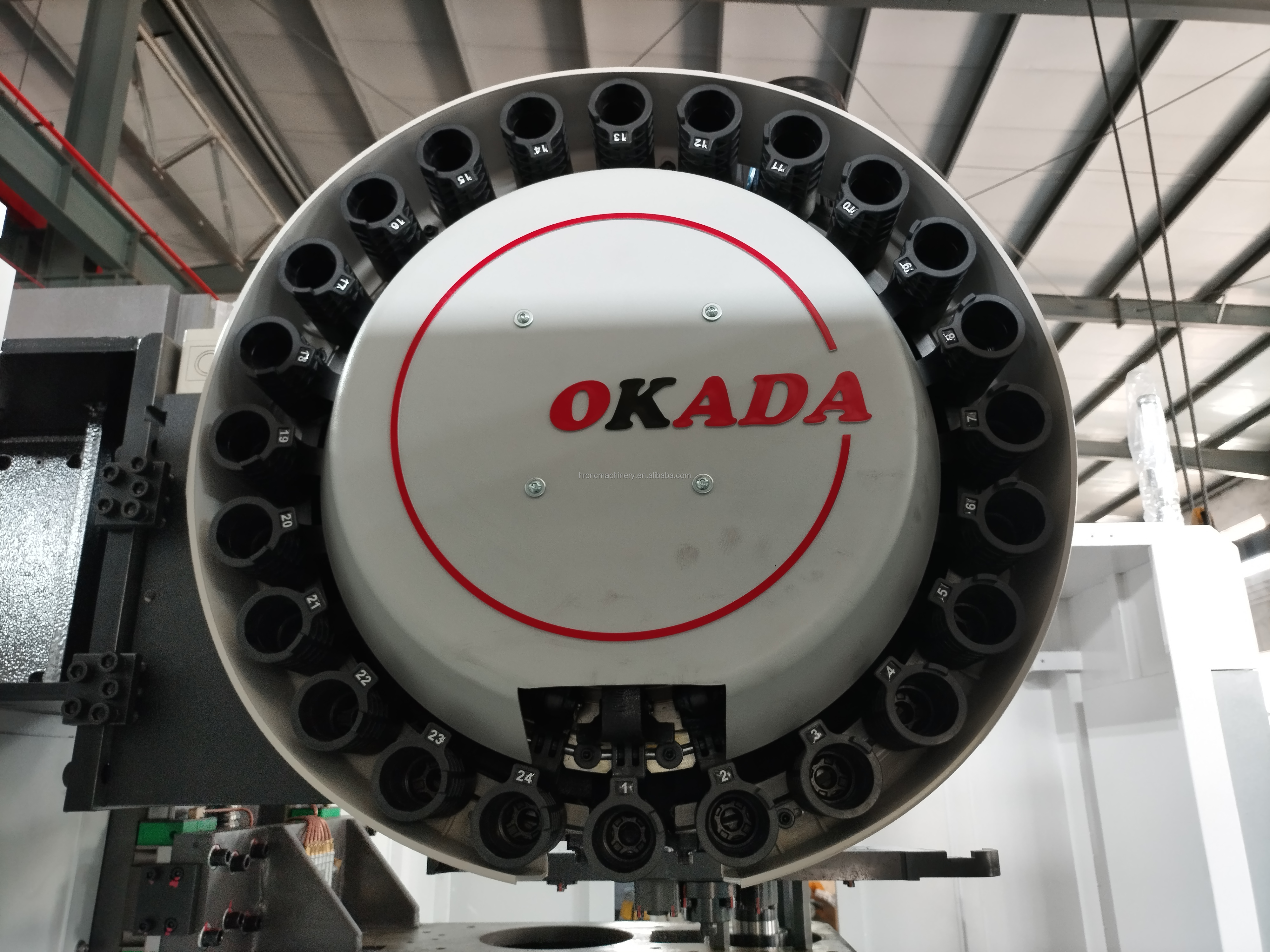

Auto tool changer

Optional configuration: 3 axis ,

4 axis ,5 axis :

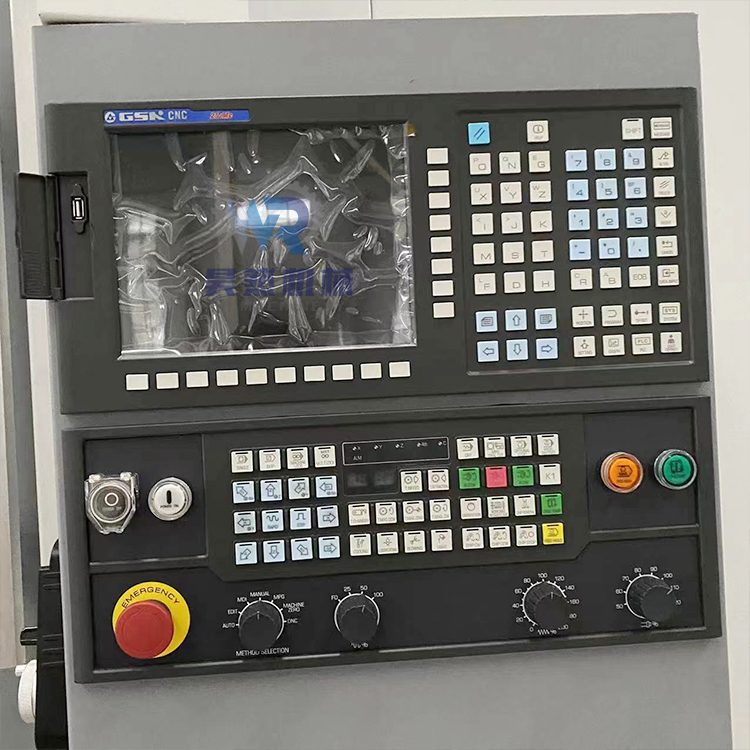

GSK cnc system

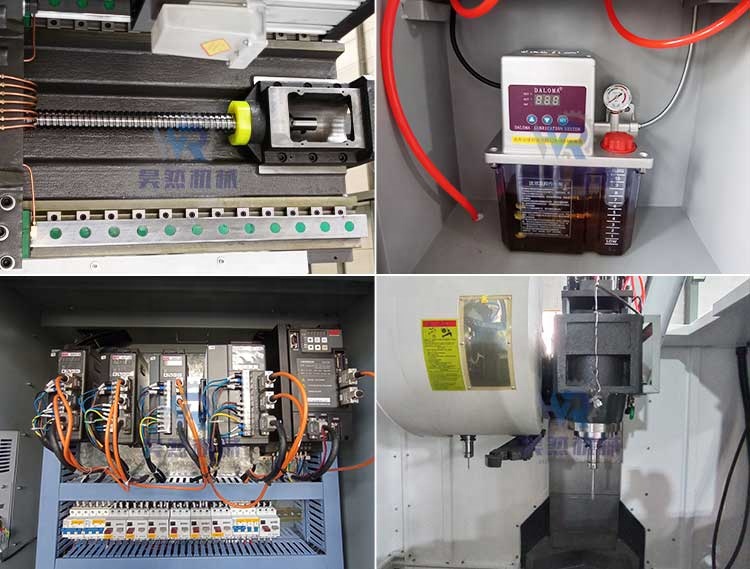

NSK ball screw and bearing

Electric cabinet

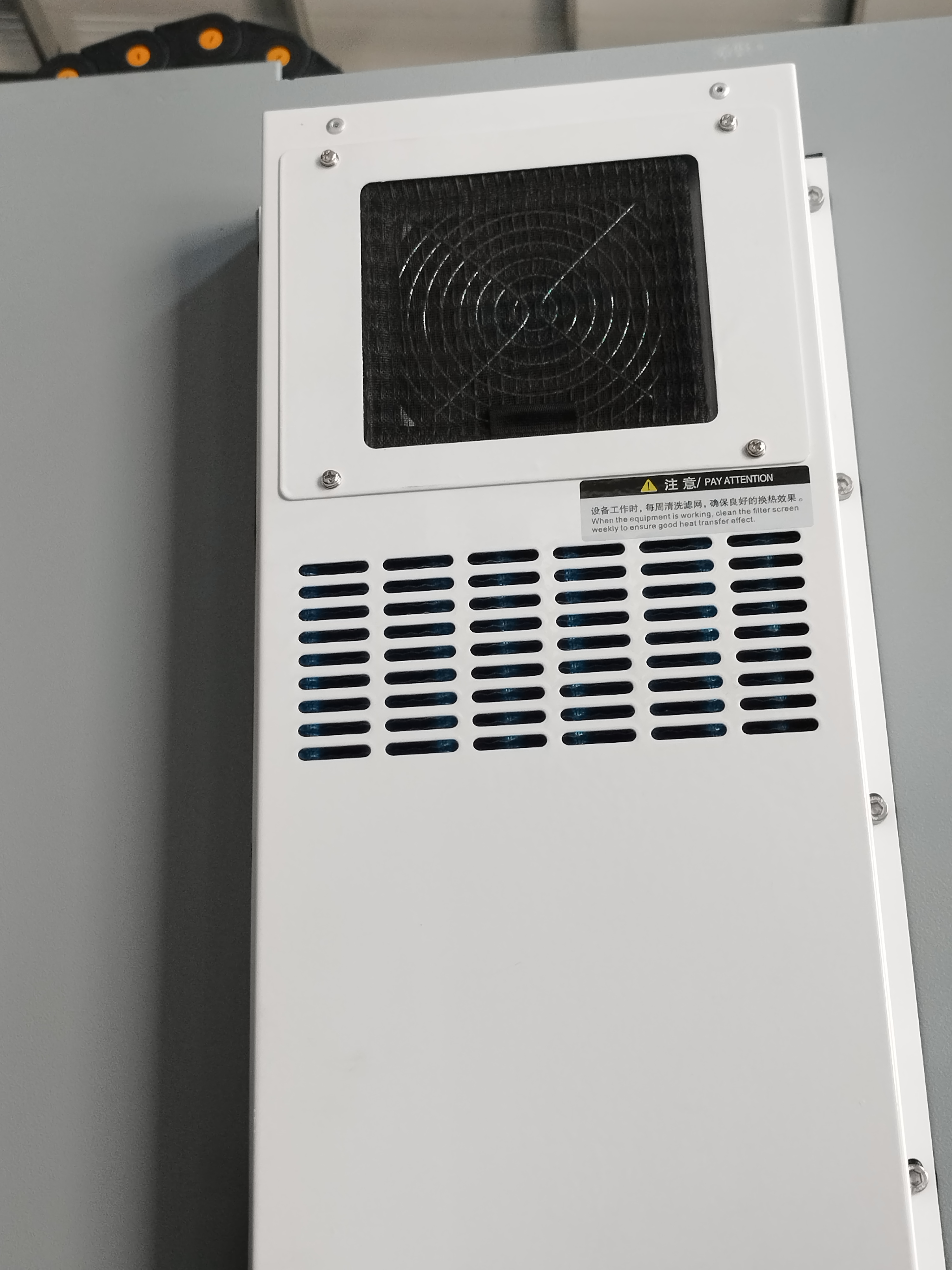

Heat extractor
