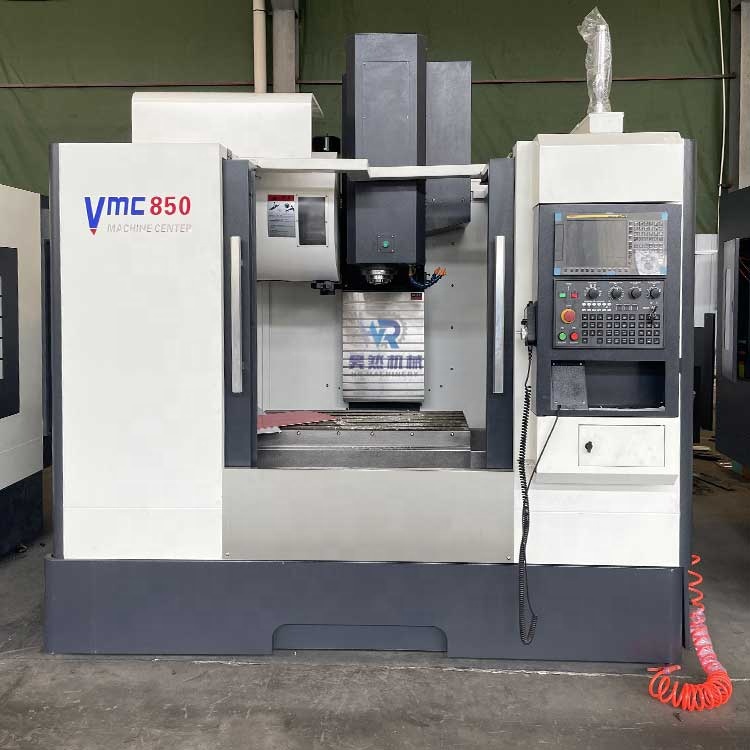

5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer

Brand Name : HR

Model Number : VMC850

Place of Origin : CHINA

Certification : CE

MOQ : 1 SET

Price : 20800USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 SETS 1 month

Delivery Time : 30 work days

Packaging Details : Standard materials

Z-Axis Travel : 500mm

Y-Axis Travel : 500mm

Machine Weight (Kg) : 5300kg

Model : VMC850

Tool Changer Capacity : 16/24

Warranty : 1 Year

Dimension(l*w*h) : 2700*2150*2600

Condition : New

Type : Vertical

After-sales service provided : Field maintenance and repair service

Voltage : Customer's Requirement

Power(w) : 7.5/11 kW

Machine type : China manufacturer machining center cnc vertical process center

Product name : small metal mold processing CNC vertical machining center VMC640L

Inner structure : Very steady

Worktable size : 900*500 mm

Tool magazine : drum type or round disc type tool magazine

Contact Now

Product Description

CNC mill high precision CNC vmc machines vmc machine VMC850 machining center

VMC850 is a high performance vertical machining center, it has the characteristics of high speed, high performance, high rigidity and high stability. All castings of this machine are secondary tempered to provide excellent rigidity and stability to the machine, which can make this machine maintain high speed and high stability in the process of processing.

5 Axis Precise VMC850 Vertical CNC Machining Center 8000rpm Spindle 16/24 Tool Changer

Item	VMC850
Size of worktable(length×width)mm	1000×500
T slot (mm)	5-18x100
Max loading weight on worktable	600kg
X-Axis travel(mm)	800
Y-Axis travel(mm)	500
Z-Axis travel(mm)	500
Distance between spindle nose and table	105-605mm
Distance between spindle center and column(mm)	500
Spindle taper	BT40-150
Max. spindle speed( rpm)	8000/10000/12000
Spindle motor power(Kw)	7.5/11kw
Rapid feeding speed: X,Y,Z axis m/min	16/16/16 (24/24//24 liner guidway)
Fast cutting speed m /min	10m/min
Positional accuracy	±0.005 mm
Repeat positional accuracy	±0.003 mm
Auto Tool changer type	16 tools head type tool changer(optional 24 arm type auto tool changer)
Max. tool length	300mm
Max. Tool diameter	Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight	8kg
Tool changing time(tool-to-tool)	7sec
Air pressure	0.6 Mpa
Machine weight	5500KG
Overall sizse(mm)	260023002300

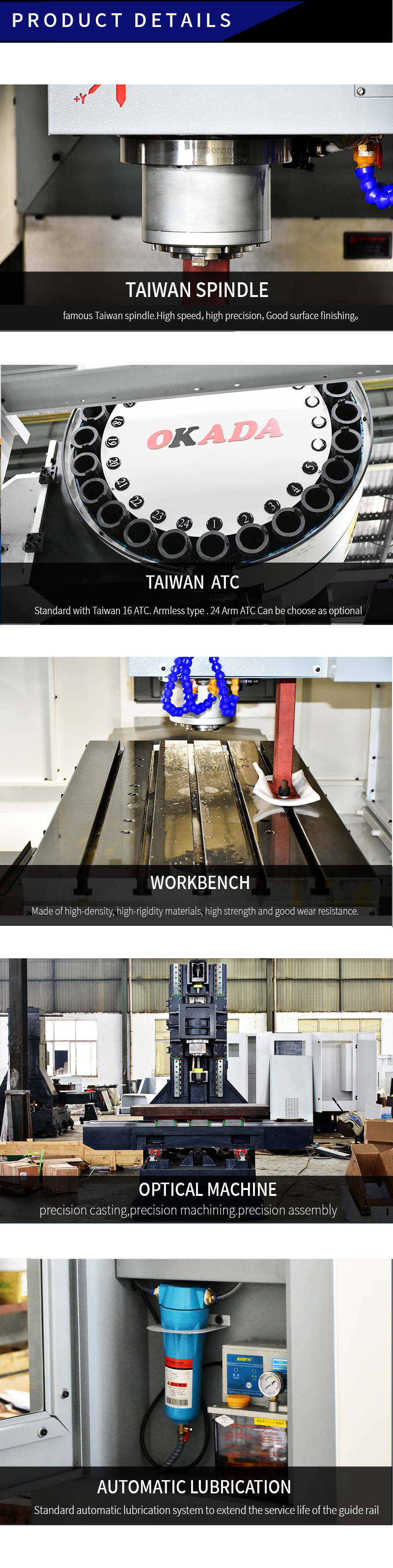

Detailed Images
