M1432 High Precision Cylindrical Grinding Machine

Name: M1432 High Precision Cylindrical Grinding Machine
Brand: HR
Price: 12000 USD

Buy cheap M1432 High Precision Cylindrical Grinding Machine product

Brand Name : HR

Model Number : M1432-1000

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 12000 USD

Payment Terms : L/C, T/T

Supply Ability : 100sets/month

Delivery Time : 30 working days

Packaging Details : Standard material packaging

Voltage : 220/380V,Customriszed

Power(w) : 1.5KW

Condition : New

Weight : 3700kg

Cnc or not : Normal

After-sales service provided : Engineers available to service machinery overseas

Spindle taper : MT4

Contact Now

Product Description

SPECIFICATIONS		Units	M1432x1000	M1432x1500
Capacity	Max.Dia ground	mm	320	320
	Max.length ground	mm	1000	1500
	Min.Dia ground	mm	10	10
	Max.load weight between centers	kg	150	150
	Max.ground hold dia(ID)	mm	125	125
	Max. grinding depth	mm	160	160
	Center Height	mm	165	165
	Max. length between centers	mm	1000	1500
Worktable	Swivel angle CW/CCW	°	3/6	3/6
	Infinitely variable hydraulic speed control	m/min	0.1-3	0.1-3
	Max.travel	mm	1010	1510
	Handwheel /revolution	mm	9.6	9.6
Workhead	Work head swiveling angle	°	CCW:60° ; CW:30°	CCW:60° ; CW:30°
	Spindle taper		Morse No.4	Morse No.4
	Speed range	rpm	30,48,75,118,190,300	30,48,75,118,190,300
Tailstock	Center travel/Manual	mm	≧23	≧23
Tailstock	Center travel/Hydraulic	mm	≧15	≧15
Internal grinding tool	Internal grinding spindle speed	r/min	14000	14000
Internal grinding tool	Spindle taper		1:5	1:5
Motor	Compulsory lubrication motor	Kw	1.5	1.5
	Coolant motor		0.15	0.15
	Grinding wheel motor		5.5	5.5
	Wotkhead motor		0.75	0.75
	Internal grinding motor		1.1	1.1
Wheel head	Grinding wheel size (D x W x B)	mm	50052203	50052203
	Revolution angle(CW/CCW)	°	10/5	10/5
	Spindle speed	rpm	1316	1316
	Fast travel speed	r/min	≧30	≧30
	Lateral manual stroke	mm	65	65
	Handwheel feed/revolution	mm	1	1
	Min feed	mm	0.002	0.002
	Wheelhead total feed travel	mm	150	150
General Specification	Machine size	mm	3400x1800x1800	430016501700
General Specification	Machine weight	kg	3700	4200

M1432 High Precision Cylindrical Grinding Machine

This machine is a common cylindrical grinder, mainly used for grinding cylindrical and conical surfaces of parts, suitable for tool, repair and small and medium batch workshops. The longitudinal movement of the worktable adopts hydraulic or manual stepless speed change. The horizontal feed of the grinding wheel frame adopts hydraulic fast forward and backward and manual feed. The workpiece, grinding wheel, oil pump and coolant pump are driven separately by their own motors.

Machine Details

Hand wheel rotation

Motor

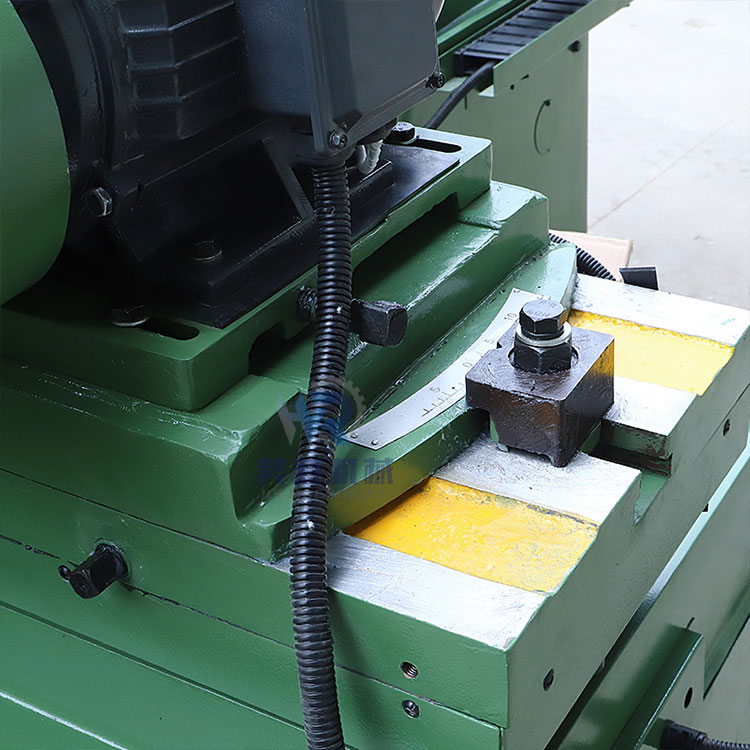

Bed details

Operation panel

Product Tags:

M1432 Cylindrical Grinding Machine

High Precision Cylindrical Grinding Machine

High Precision Grinding Machine
